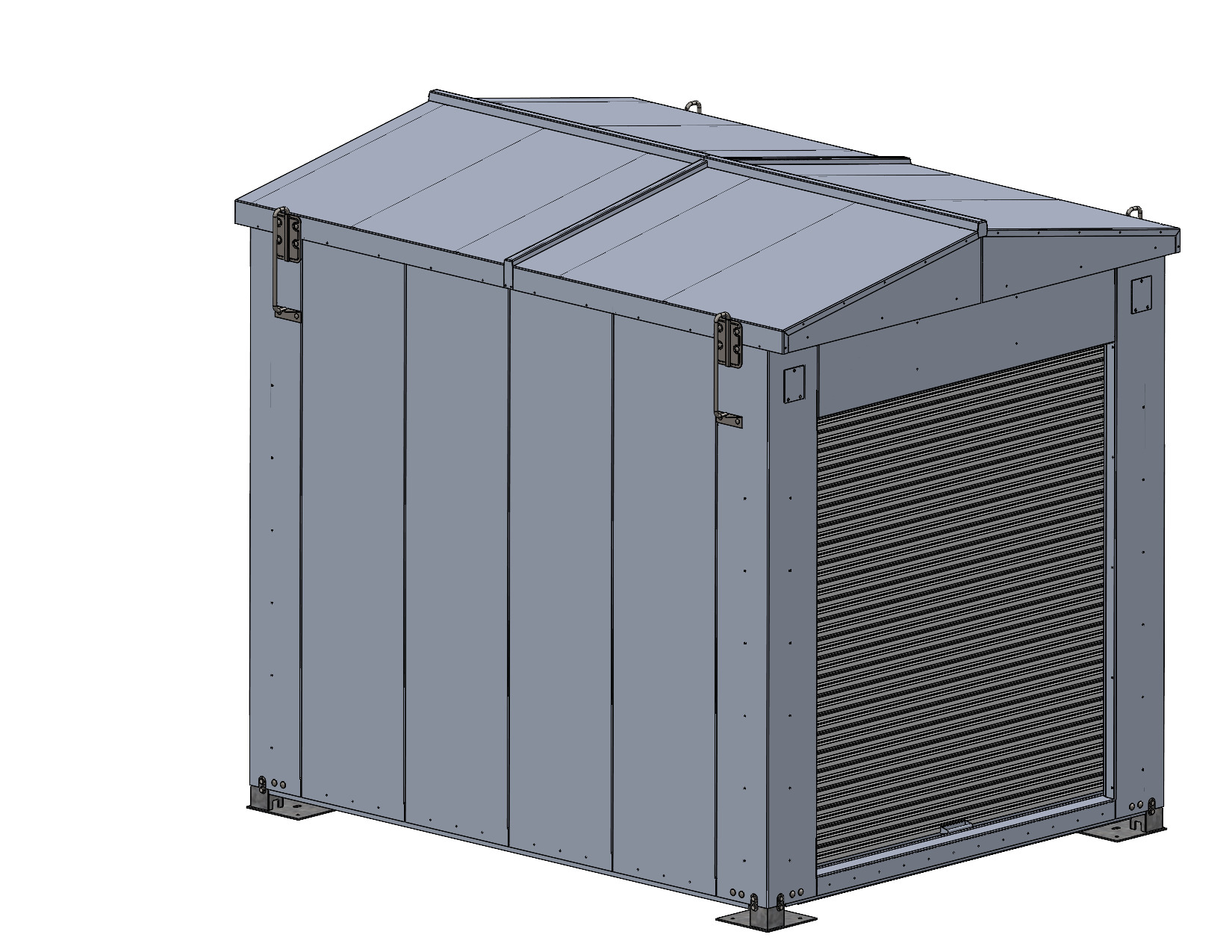

Equipment Shelter with Roll-Up Access Door
This heavy-duty, field-deployable equipment shelter features a full-width coiling metal roll-up door.
Structural & Material Specification
-
Panel Construction Options: Fabricated with riveted & stitch welded wall panels, available in either aluminum or powder-coated steel for enhanced weather protection and long-term durability in harsh environments.
-
Structural Frame & Rigging: Built with integrated lifting rings for easy placement, and an integrated drop-down feet for mounting to concrete pads or sunk in the ground.
-
Secured Full-Width Loading: The end-mounted curtain roll-up door provides an unobstructed, wide-opening entrance designed specifically to accommodate bulky, oversized machinery and heavy equipment that cannot pass through standard personnel doors.
Internal Layout Options
-
Option A: Unified Open-Bay Configuration
Provides a single, contiguous interior space maximizing internal floor area.
-
Option B: Split Climate-Controlled & Bulk Storage Configuration
Utilizes an internal partition wall to divide the enclosure into two specialized compartments:
-
Enclosed Electronics Bay: A fully isolated, sealed compartment designed for insulation and climate control (utilizing a side-mounted wall-mount HVAC unit). This protects sensitive signal processors, communications gear, and battery banks from ambient dust, moisture, and extreme temperature swings.
-
Bulk Storage Bay: An unconditioned utility area accessed directly via the main roll-up door. This provides dedicated storage for oversized components, tools, etc.
-
