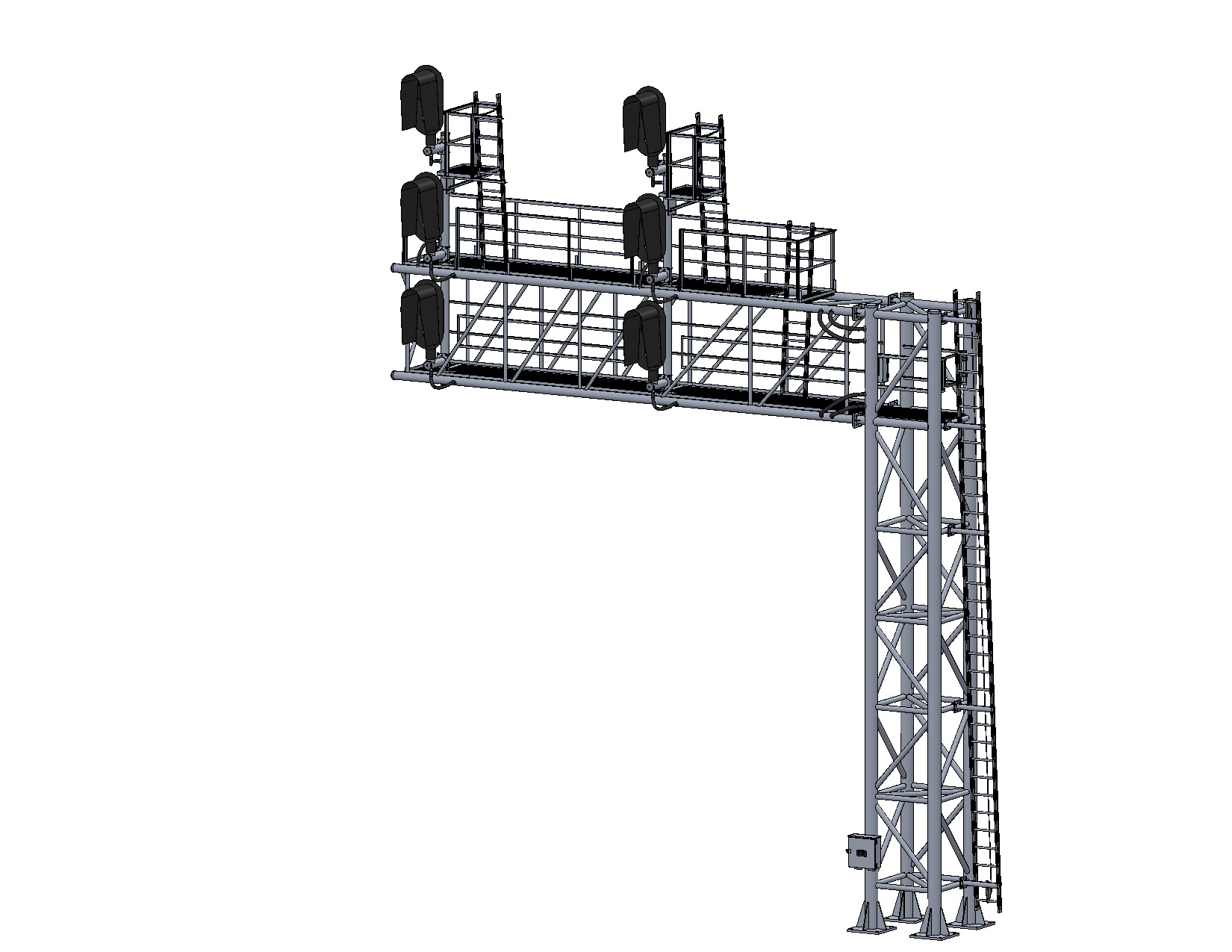

This heavy-duty, overhead railroad wayside signal structure features a 28 ft. reach cantilever arm mounted on a four-post vertical truss tower. Fabricated entirely from 6061-T6 structural aluminum, it provides track-spanning signal head placement with integrated, safe walkway access for maintenance personnel across multiple tracks.

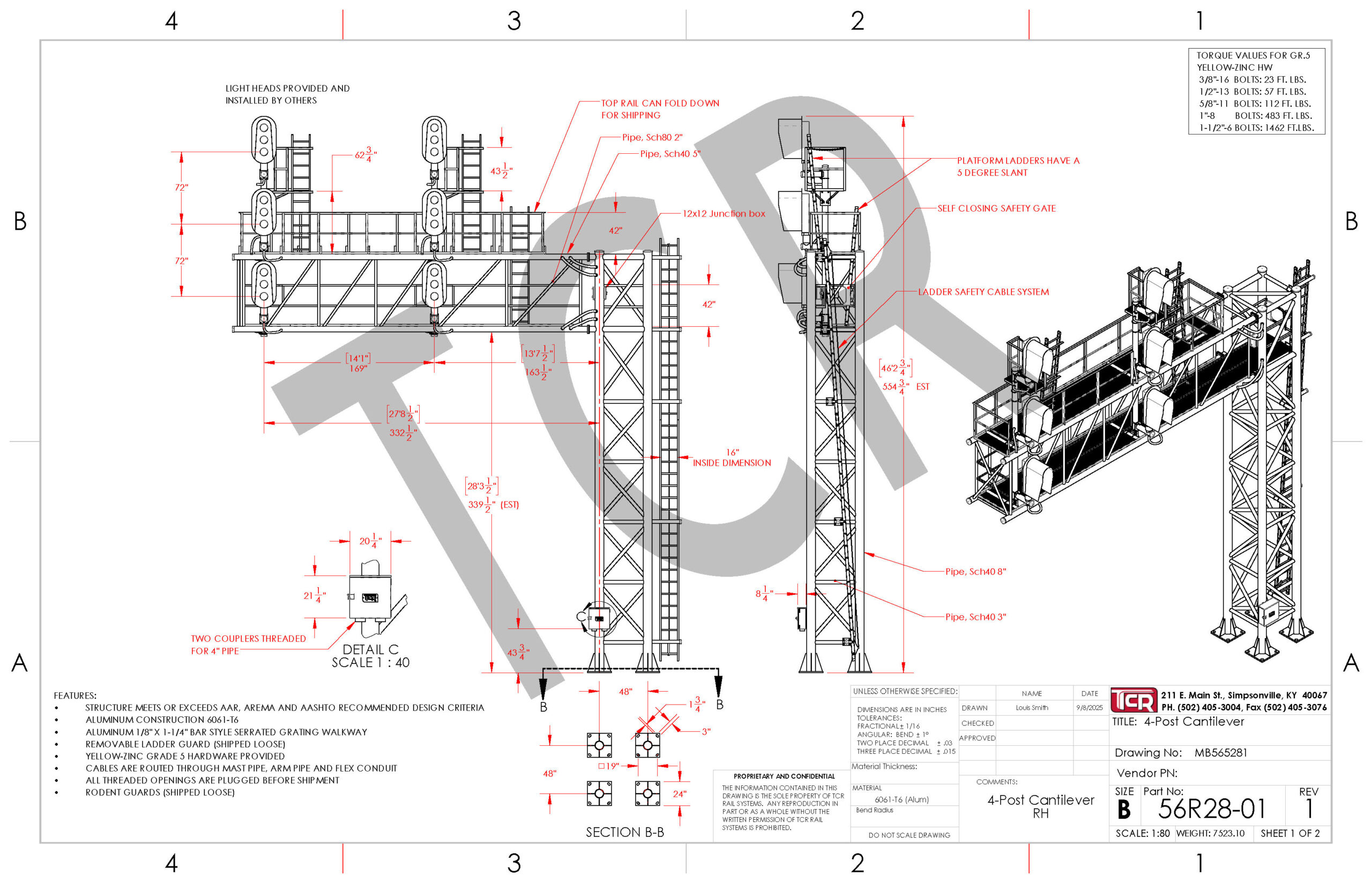

Key Features & Structural Specifications
-
Design Standards: Engineering meets or exceeds all applicable AAR, AREMA, and AASHTO recommended design criteria.
-
Aluminum 6061-T6 Construction: Delivers high strength-to-weight ratio and corrosion resistance.
-
4-Post Vertical Tower Base: Features a four-pipe lattice truss column anchored via heavy-duty base plates to withstand high wind loads and overhead vibration.
-
Overhead Walkway & Access:
-

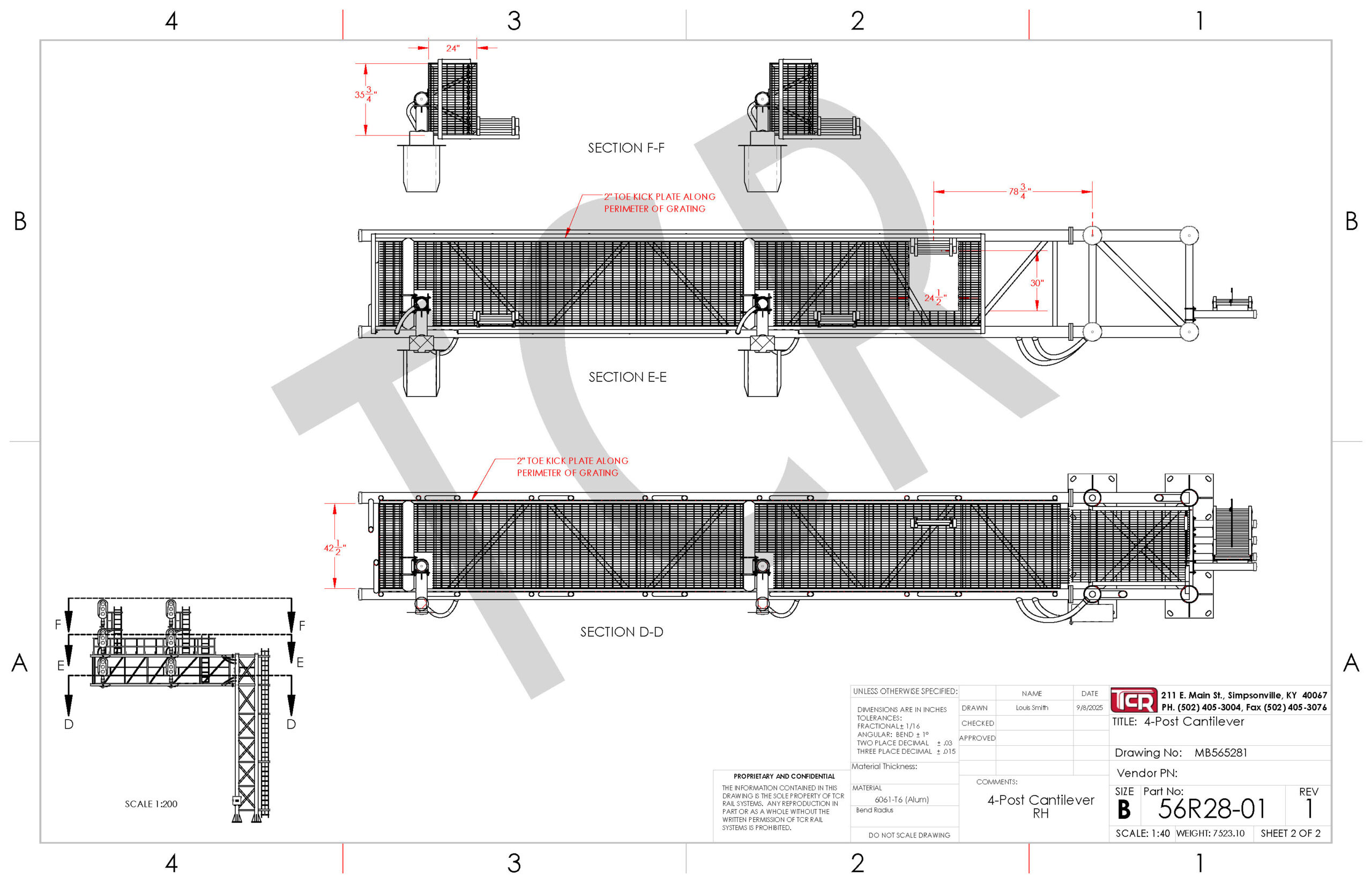

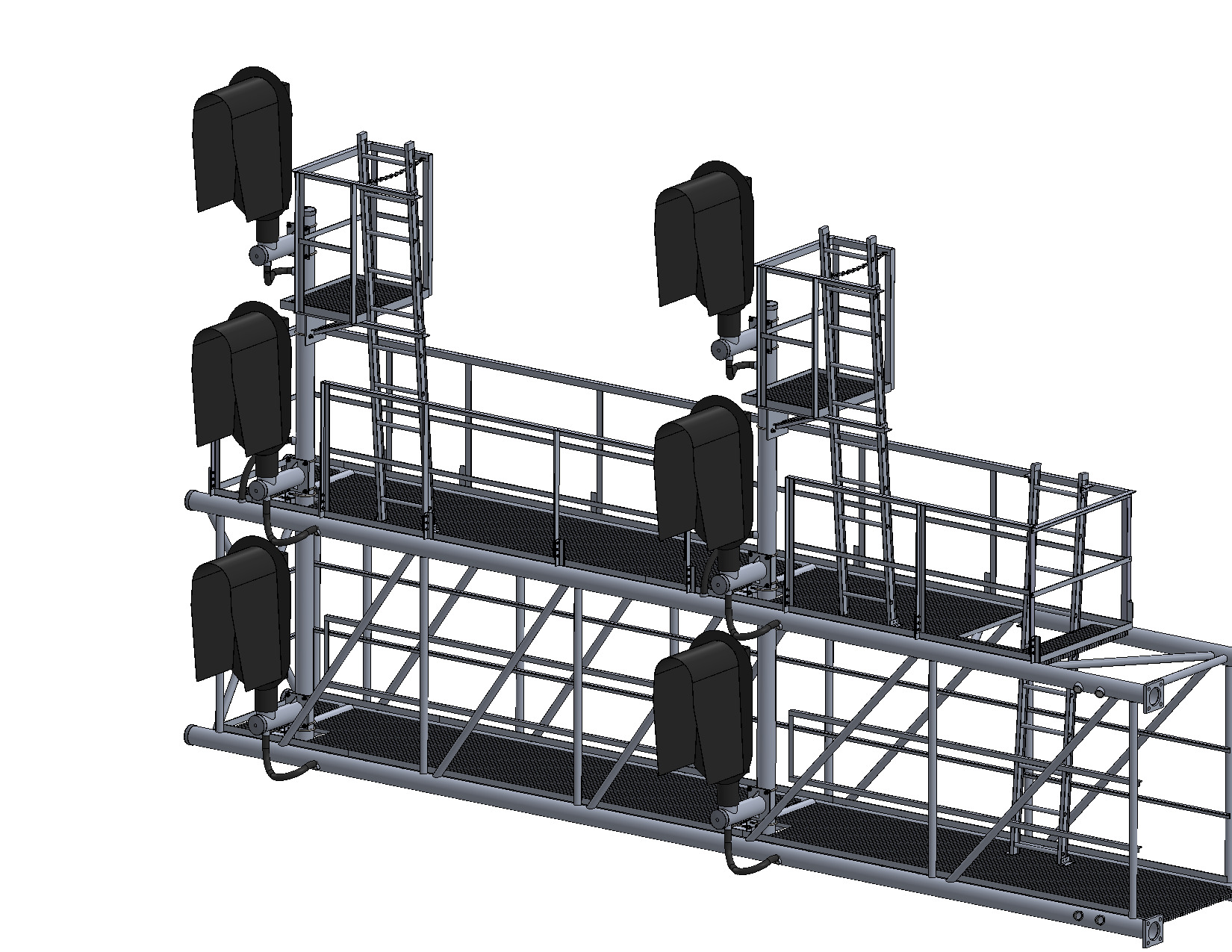

Serrated Grating Walkway: Slip-resistant aluminum bar grating along the full length of the walkway.
-
OSHA-Compliant Safety Features: Equipped with platform access ladders (5-degree slant), a ladder safety cable system, a removable ladder guard (shipped loose), and a self-closing safety gate at the platform level.
-
Fold-Down Handrail: Top handrails are hinged to fold down for transport, reducing shipping height.
-
-
Wire Routing & Cable Management: Internal cable raceways through the mast pipe, cantilever arm pipe, and flexible conduit keep signal wiring protected from weather and environmental hazards. All threaded openings are pre-plugged prior to shipment, and rodent guards are included.
-
Hardware: Supplied with high-strength yellow-zinc or hot dip galvanized Grade 5 hardware throughout.
