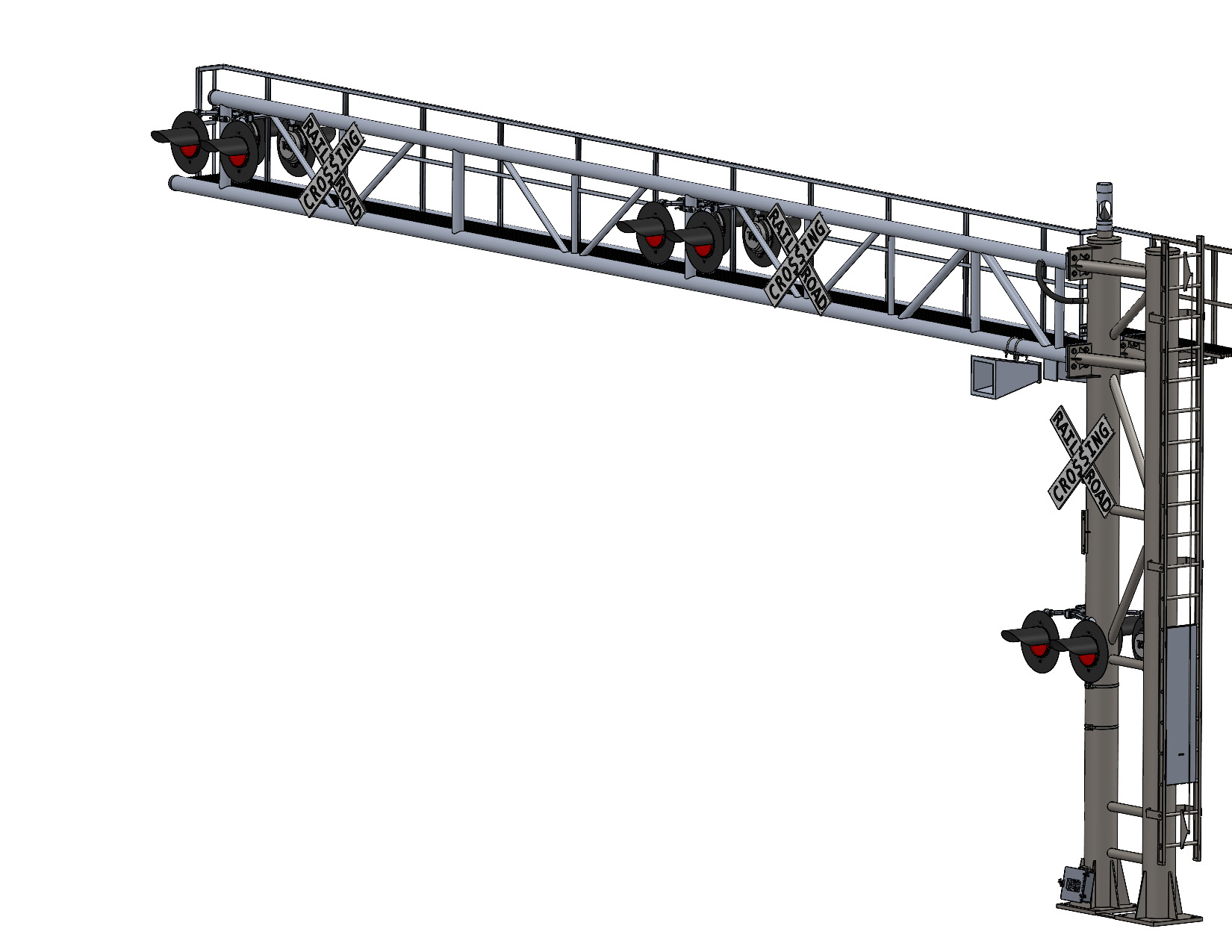

Walkout Cantilever with a steel double mast, a 44 ft. arm and a 17′-6″ road clearance.
- Arm made with all aluminum construction utilizing 6061-T6 aluminum alloy
- Mast made from A500 hot-dip galvanized steel.
- 1/8″ x 1-1/4″ walkway grating
- Handrail 42″ high with intermediate handrail
- Sign mounting brackets welded to the structure
- 12″ LED flashing lights and crossbucks can be furnished
- Removable ladder guard
- Cable fall protection along ladder.
- Structure meets AAR and AASHTO requirements
Every Arm and Mast manufactured at TCR are test fitted for ease of field installation.
